Linear Ridge - Elevated Architectural Megastructure

Linear Ridge

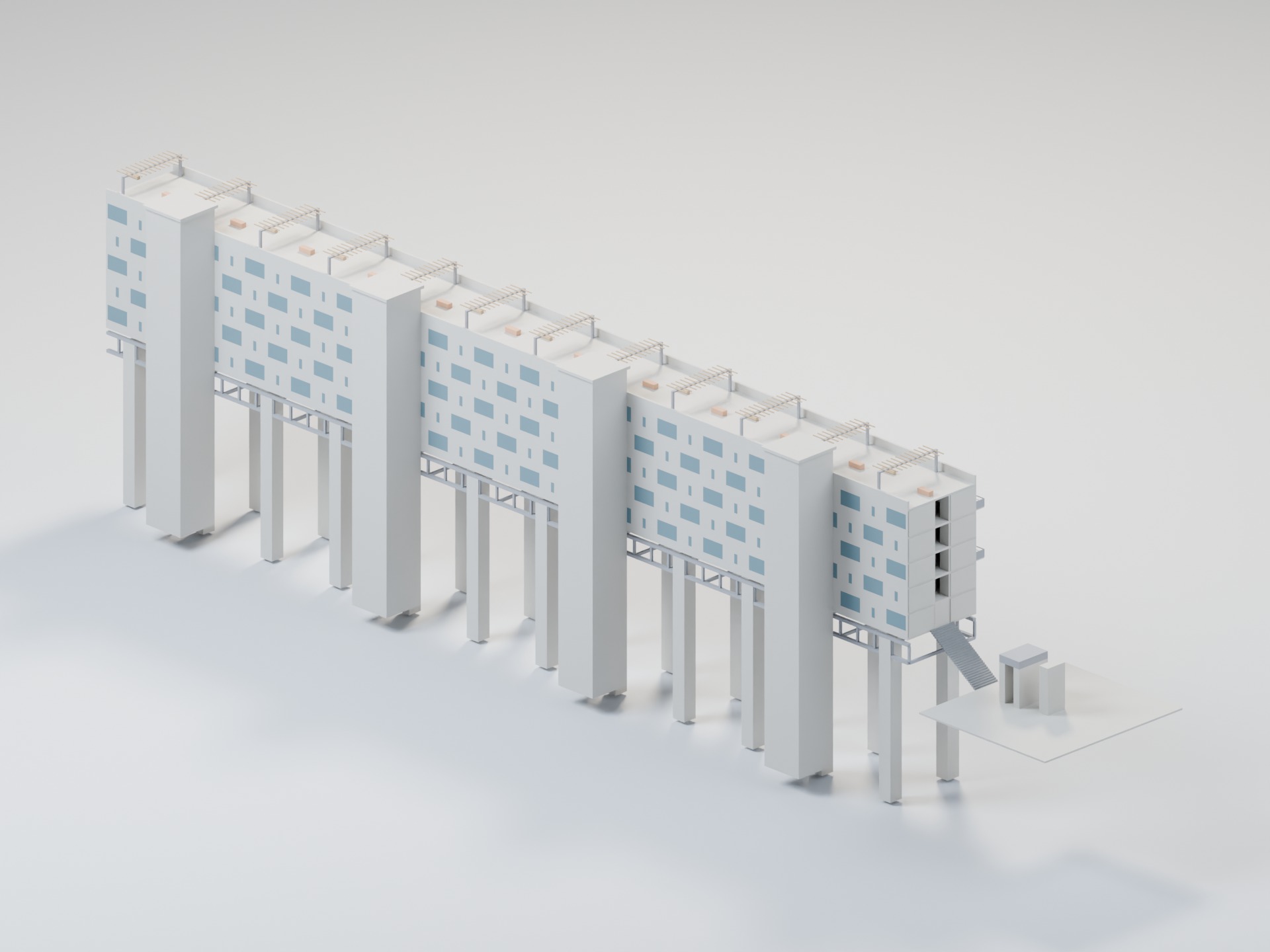

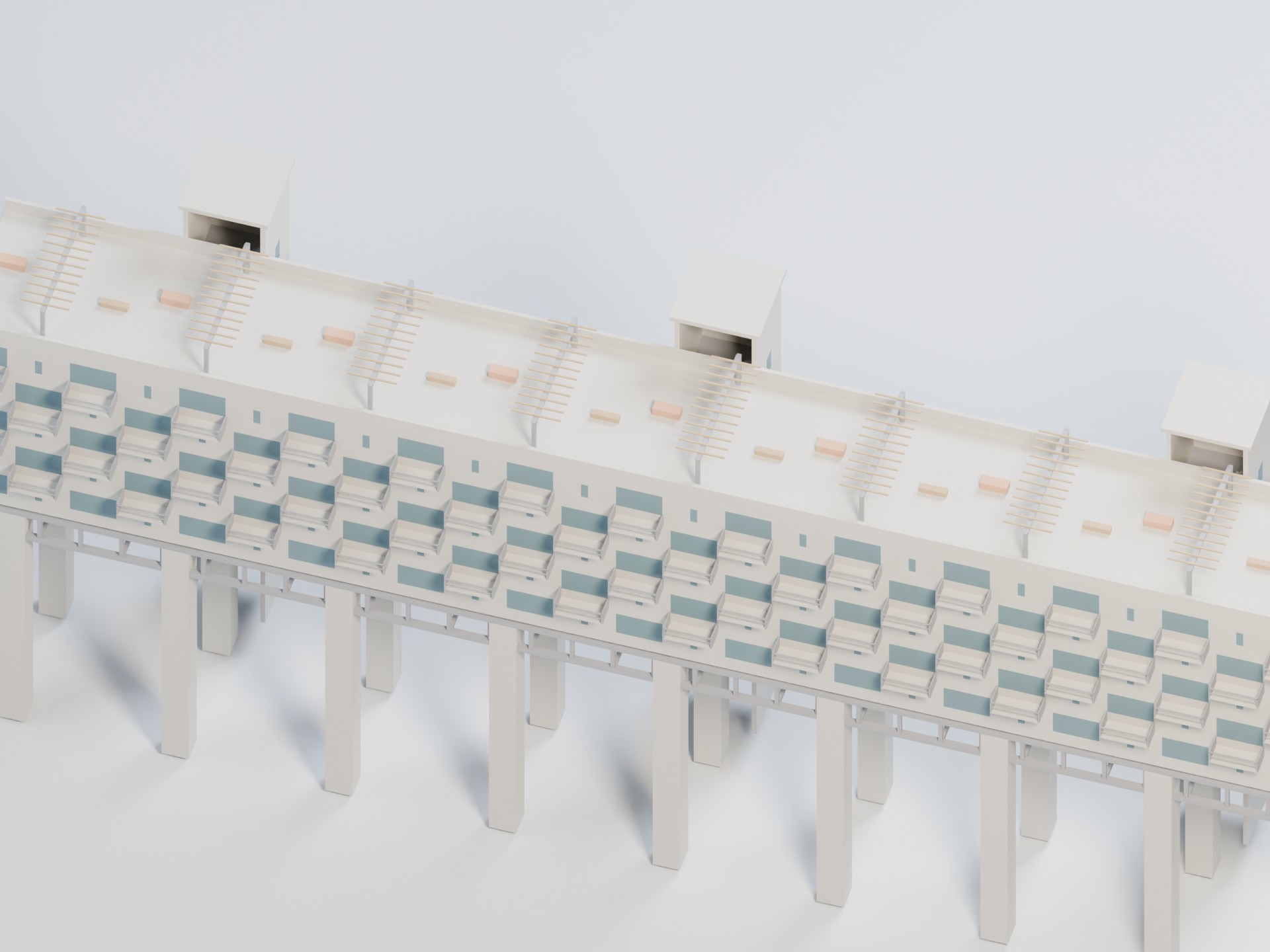

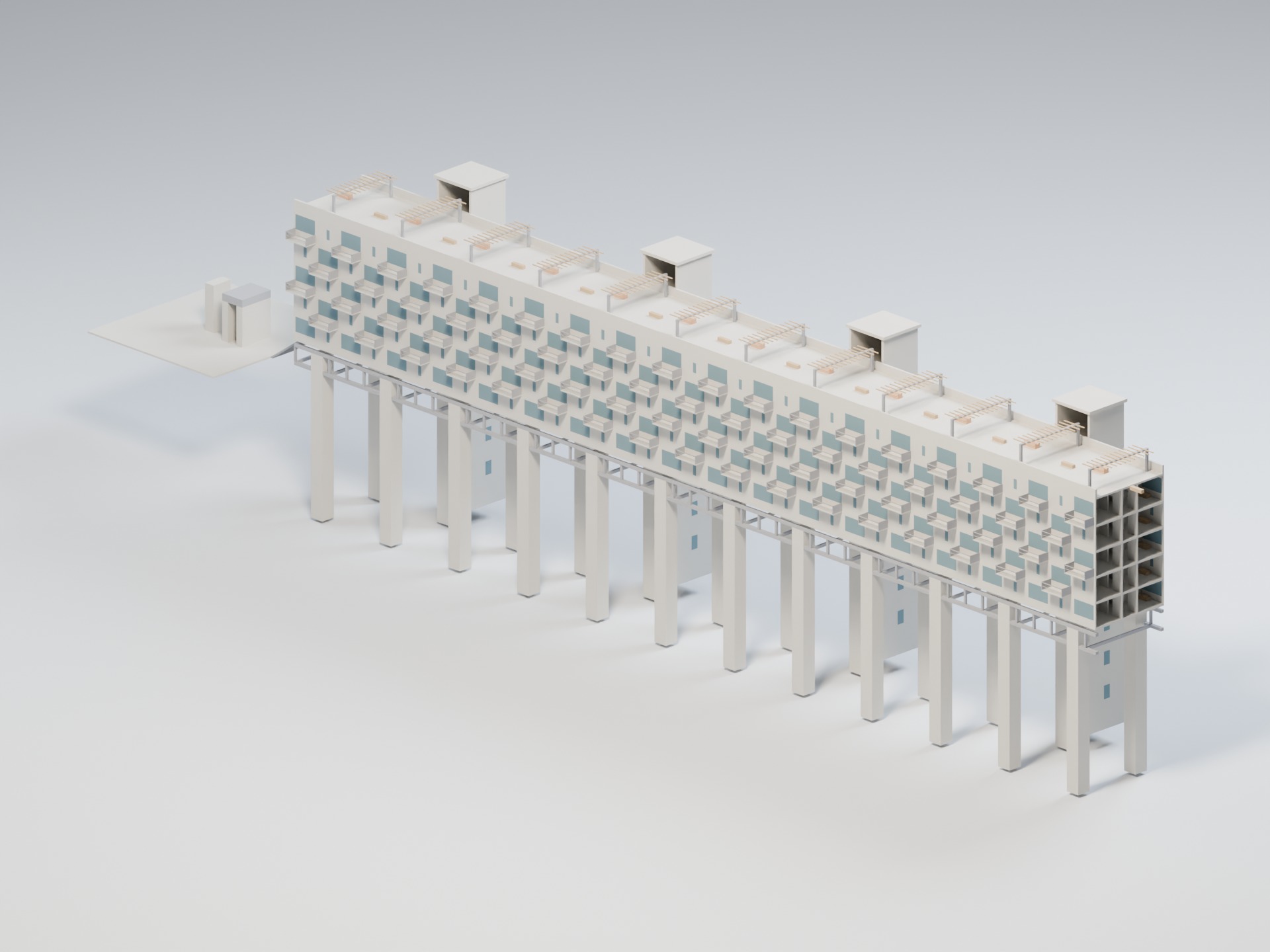

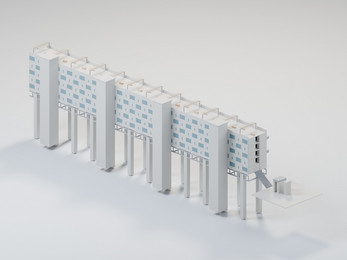

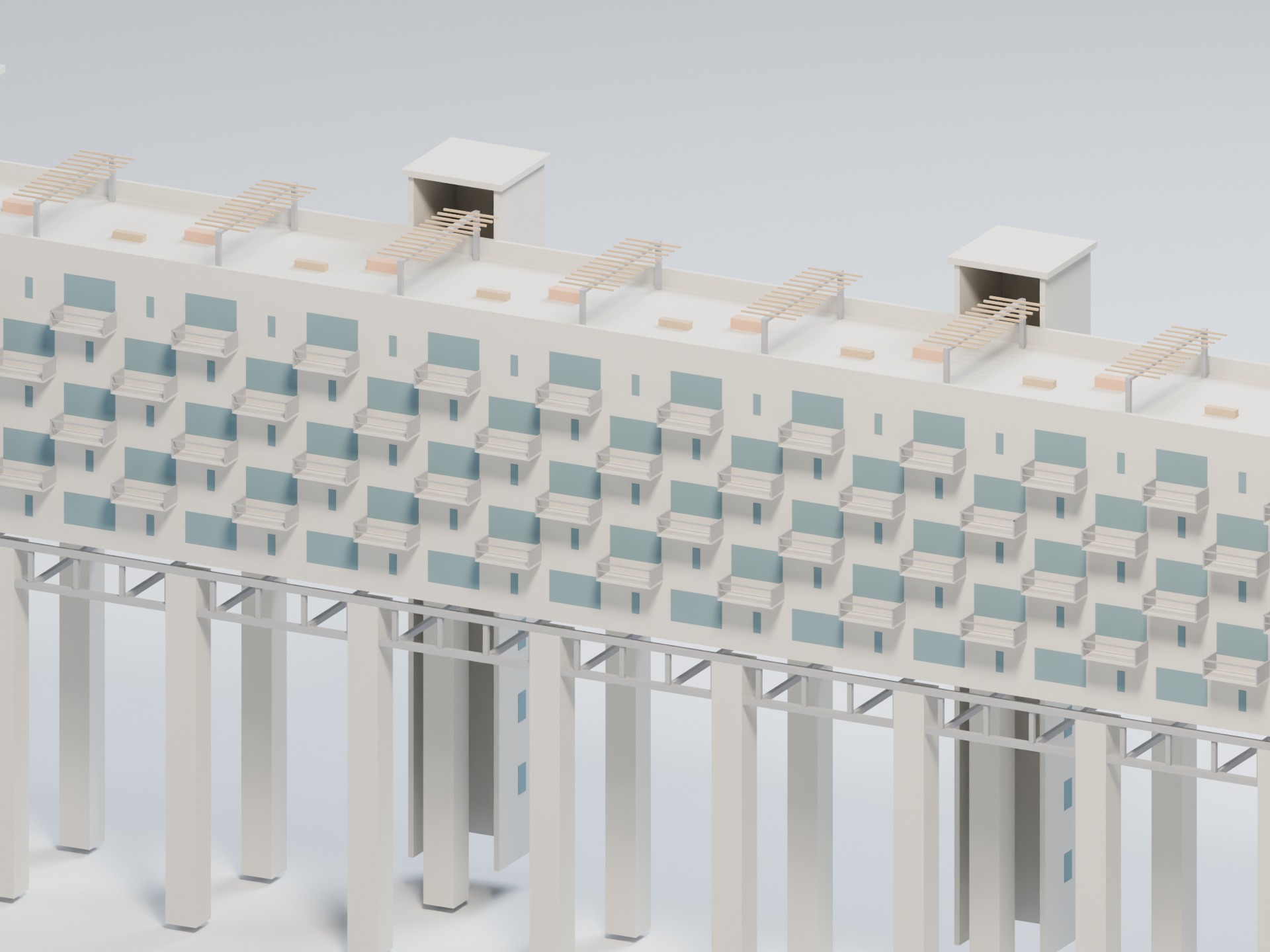

Linear Ridge is an elevated architectural composition built around a long residential bar, repeated balcony bays and an exposed supporting structure. Roof pergolas and stair towers give the silhouette a consistent rhythm.

Use it as an architectural scene element or as a starting point for material development and environment composition.

Included

• FBX model, import notes and commercial asset license
• 187,644 triangles; 20 source category meshes; 22 basic material slots
• Approximately 173 × 24.3 × 44.9 metres; centred in X/Y, lowest point at Z=0; Z-up
• Version 0.1.2, checked in Blender and Unreal Engine 5.8.1
• Each of the 20 category meshes has its own pivot at its base centre; written in centimetres (in Unreal, turn off Bake Meshes to keep pivots)

Scope and import notes

The download contains basic material values. Terrain, studio lighting, the neutral studio floor, baked PBR maps, a native Unreal project, gameplay, authored collision and LODs are not included. Engine material setup and performance work may be needed for your application.

The repaired wall categories use planar UVs. A non-overlapping texture atlas or lightmap layout is not supplied or certified. Separate architectural parts may intersect; the assembly is not certified for 3D printing. Original terrain-dependent support-foot elevations are retained.

For Unreal, enable unit conversion, use import scale 1, import normals and compute tangents using MikkTSpace. See the included README for details.

License

Personal and commercial use in unlimited projects, with no additional royalties or attribution requirement. You may modify the model and include it in finished projects. Source files may be shared with collaborators only for your projects. Standalone resale, redistribution and competing asset packs are not permitted. See the included LICENSE.txt for full terms.

AI disclosure

Created through an AI-assisted procedural Rhino workflow. Documentation was also prepared with AI assistance. These gallery images render the delivered geometry.

Changelog

0.1.2: every mesh has its own pivot at its base centre (previously at the world origin) and the FBX is written in centimetres, so Unreal keeps the correct scale with or without baking. Geometry, normals, UVs, triangle count and materials are unchanged.
